Toyota Prius C1259 and P0A0D Error

The Toyota Prius C1259 and P0A0D errors are diagnostic trouble codes that relate to the hybrid system of the vehicle. The C1259 code specifically indicates a malfunction in the regenerative brake system, which is responsible for capturing and converting kinetic energy back into electrical energy to charge the hybrid battery. This malfunction could be attributed to issues with the brake actuator, brake fluid, or other related components. On the other hand, the P0A0D code points towards a problem in the hybrid powertrain control module, which manages the interactions between the gasoline engine, electric motors, and battery pack. Detecting and resolving these error codes promptly is crucial to ensure the efficient and smooth operation of the Toyota Prius’s hybrid system, contributing to both fuel efficiency and environmental sustainability. If either of these codes is illuminated on the vehicle’s dashboard, it is advisable to seek professional assistance to diagnose and rectify the underlying issues.

Introduction: Understanding Hybrid System Failures

Modern hybrid vehicles like the Toyota Prius are engineered for superior fuel efficiency and low emissions. However, their advanced systems can sometimes develop faults, leading to diagnostic trouble codes (DTCs) such as C1259 and P0A0D. These errors are closely associated with the regenerative braking and high-voltage hybrid system.

If your Prius is not starting or showing hybrid system errors, it’s essential to accurately diagnose and repair the fault to prevent further damage and ensure the vehicle runs optimally. This guide explains these hybrid system codes, their implications, and how Fixmycar.pk, Pakistan’s trusted hybrid vehicle repair service, efficiently resolves them.

What is Toyota Prius Error Code C1259?

The C1259 code is a Regenerative Brake System Malfunction. It signals a problem in the hybrid braking system which is responsible for capturing kinetic energy during braking and converting it into electrical energy to recharge the hybrid battery.

Common Causes of C1259:

• Malfunctioning brake actuator assembly
• Low or contaminated brake fluid
• Fault in Skid Control ECU
• Communication issue between hybrid control ECU and brake system

Symptoms of C1259:

• Check Hybrid System warning light
• ABS and Brake Warning lights illuminated
• Reduced braking efficiency or regenerative braking disabled
• Vehicle may not start or move

What is Toyota Prius Error Code P0A0D?

The P0A0D code indicates a High Voltage System Interlock Circuit Malfunction. This typically means the hybrid powertrain control module (PCM) detected an open or faulty connection in the high-voltage circuit.

Possible Causes of P0A0D:

• Faulty battery interlock connector
• Loose or corroded high-voltage terminals
• Damaged wiring harness
• Weak or dead auxiliary 12V battery

Symptoms of P0A0D:

• Vehicle fails to start

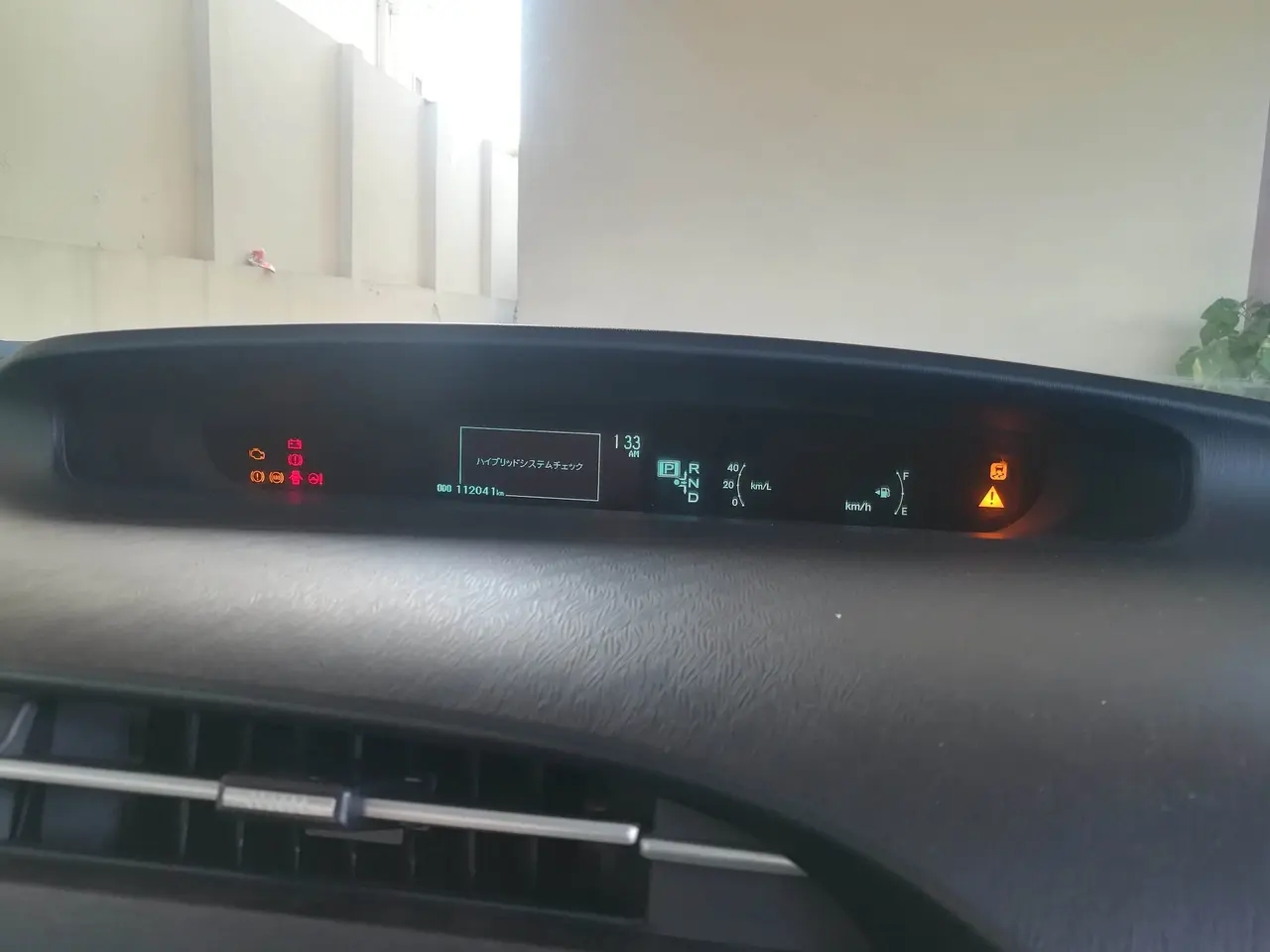

• “Check Hybrid System” message on dashboard
• Sudden vehicle shutdown
• High-voltage system disabled for safety

Additional Hybrid System Trouble Codes to Watch

Toyota Prius hybrid systems may also display other related DTCs such as:

• C1203: ECM Communication Circuit
• C1259: HV System Check
• C1310: Skid Control ECU Error
• C1345: Traction Control / ABS Malfunction
• C1392: Brake Stroke Sensor Malfunction
• C1451: Motor Drive Malfunction

Safety Warning: Prius High Voltage System

The Toyota Prius hybrid system operates around 210 VDC, which is potentially lethal if mishandled. Only trained technicians with proper high-voltage safety equipment should inspect or service Prius hybrid components.

Toyota Prius C1259 and P0A0D Error Images

P0a80 Replace Hybrid Battery Pack

P0a7f Hybrid Battery Pack Deterioration

Case Study: Toyota Prius Not Starting – Fixed by Fixmycar.pk

Situation:
A customer contacted Fixmycar.pk after their Toyota Prius failed to start. Multiple workshops recommended replacing the hybrid battery pack, but the car remained immobile.

Diagnosis:
Fixmycar.pk’s hybrid specialists performed a thorough scan and inspection. DTCs C1259 and P0A0D were detected. Upon detailed testing:

• The auxiliary (12V) battery was found weak and replaced.
• Hybrid battery modules were individually tested – no voltage imbalance found.
• Hybrid control system was reset.
• Hybrid battery fan was clogged and cleaned.
• Brake actuator was checked for fluid level and performance.

Additional Findings:

• The engine oil was extremely low (less than 1 liter), triggering the engine low-oil safety shutdown.
• The car was saved from major engine damage due to this built-in safety feature.

Result:
After targeted repairs and resets, the Prius started successfully and resumed normal operation without replacing the hybrid battery.

High Voltage of Prius

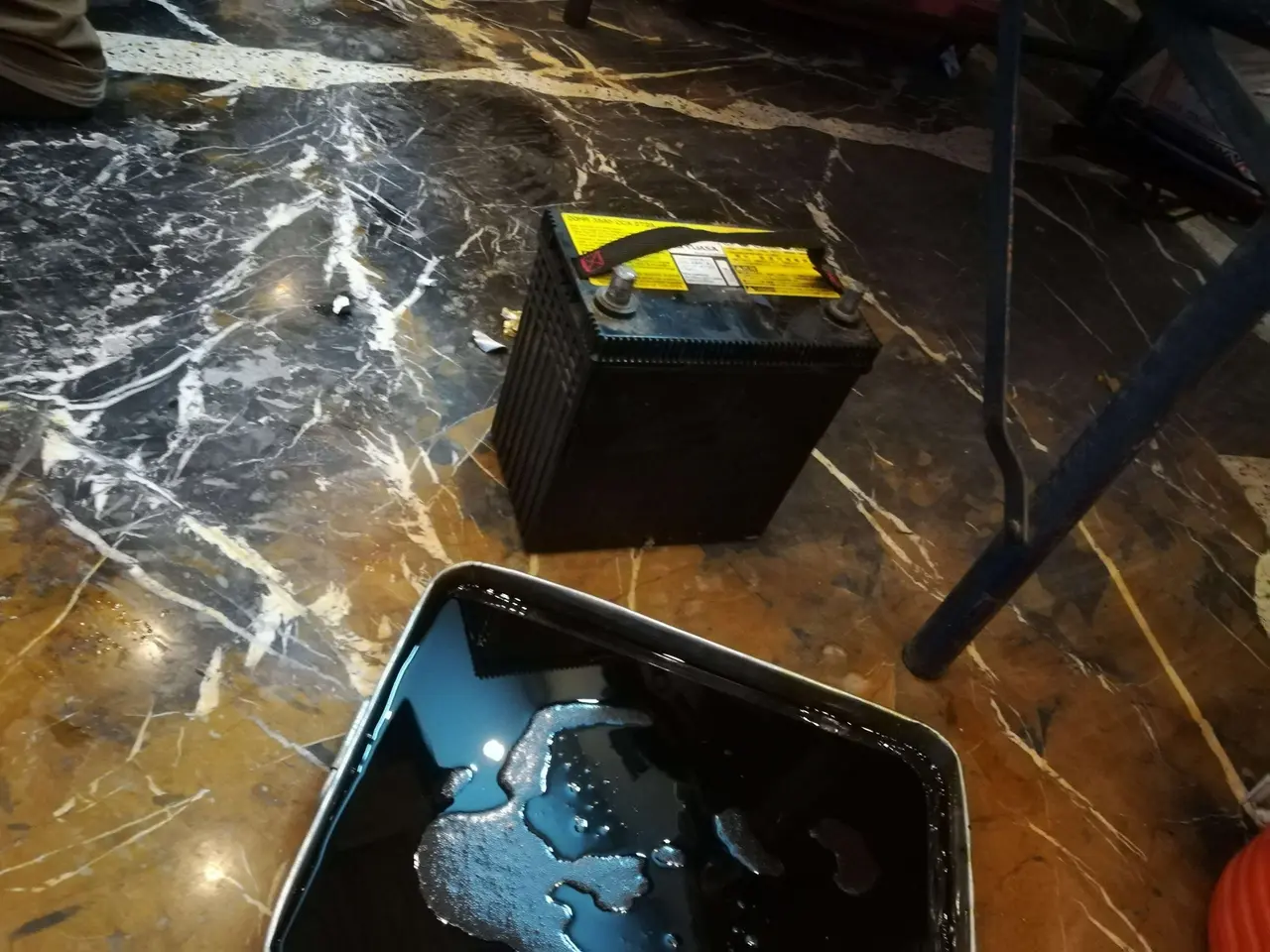

Please note that Prius has around 210 VDC in its system, extreme precautions must be taken to handle the electronics of the car. The Auxiliary battery was also found to be weak so replaced with new one.

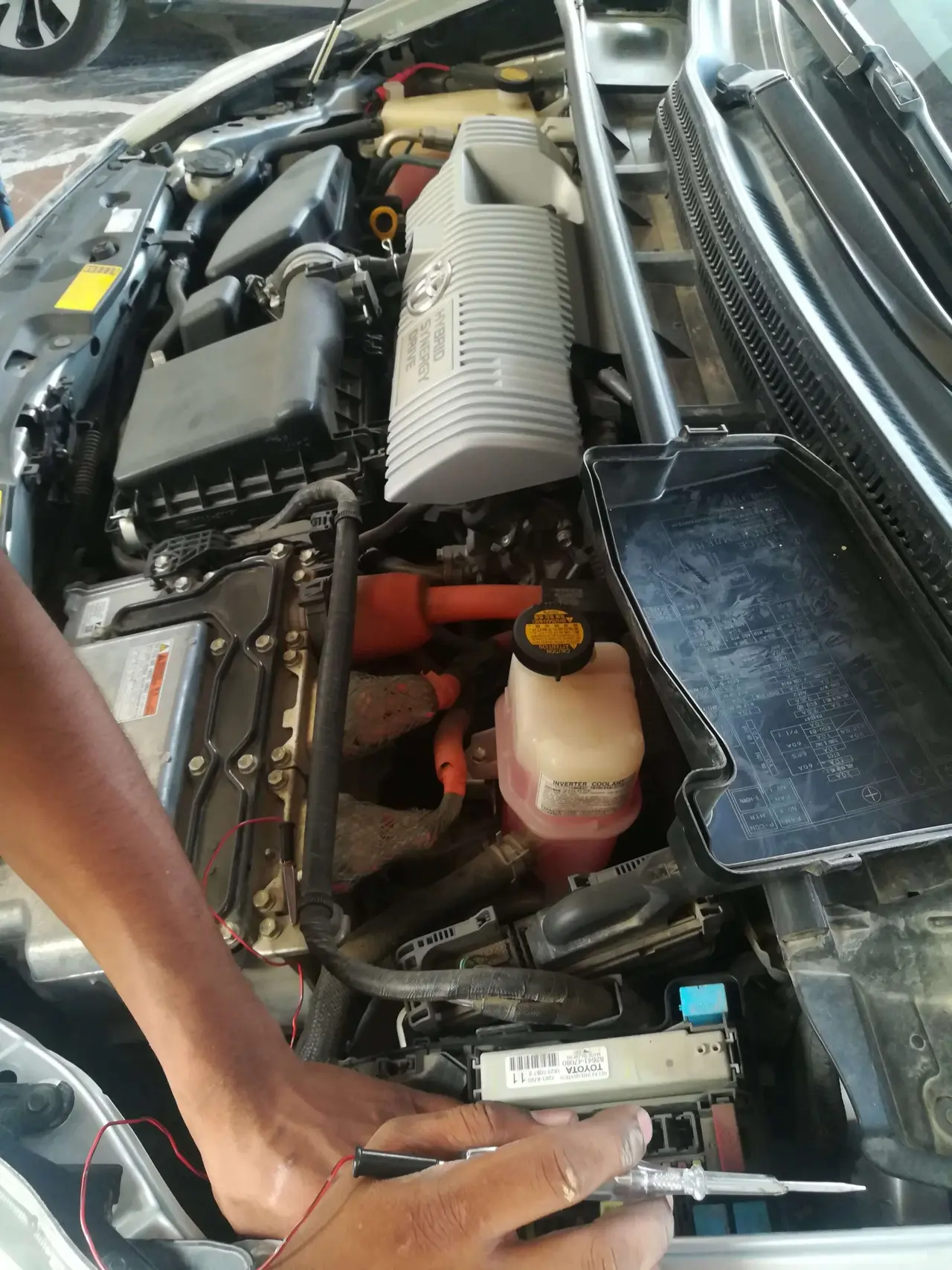

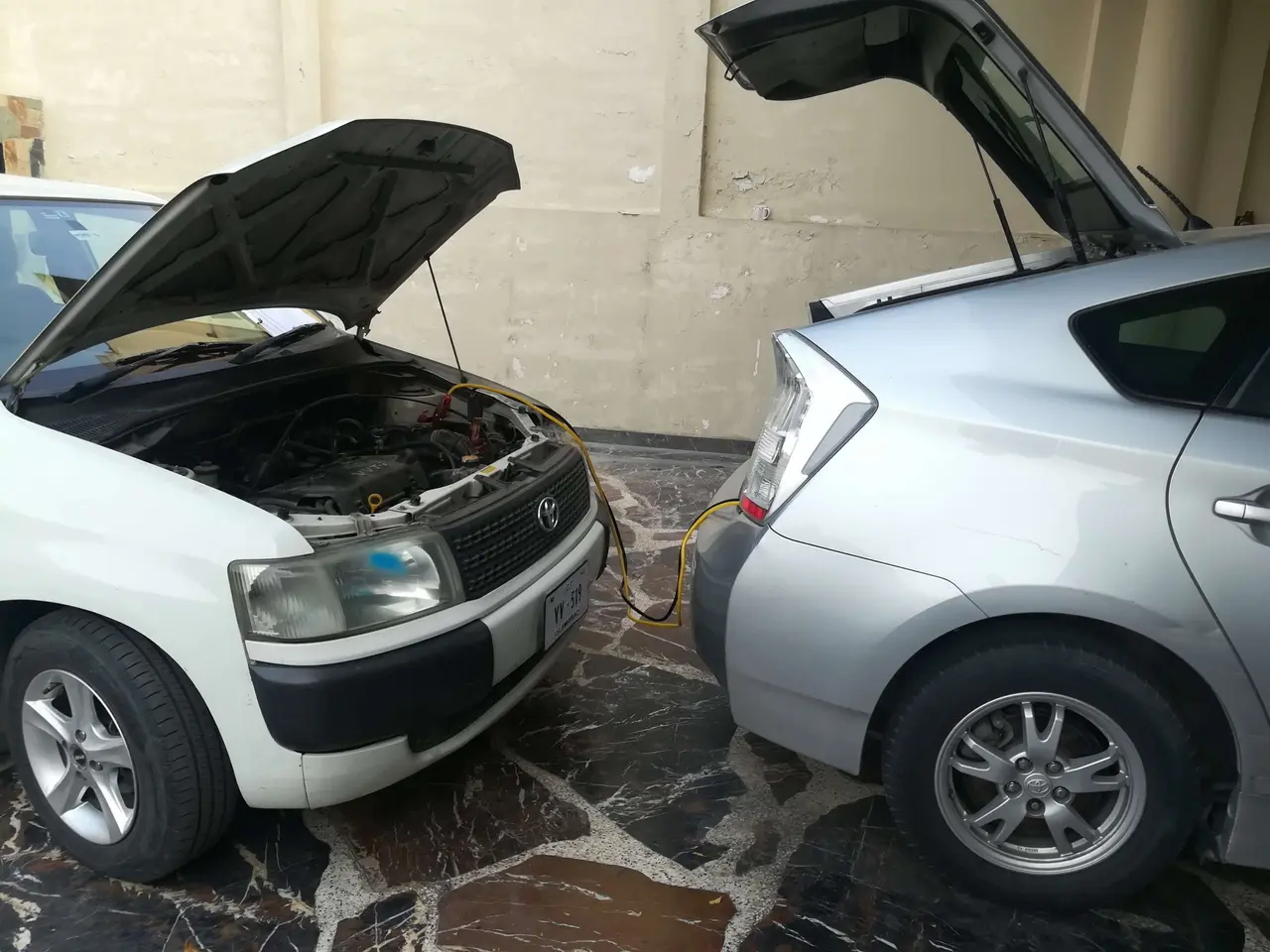

Jump Starting

Removal of Battery Pack and Testing Voltages

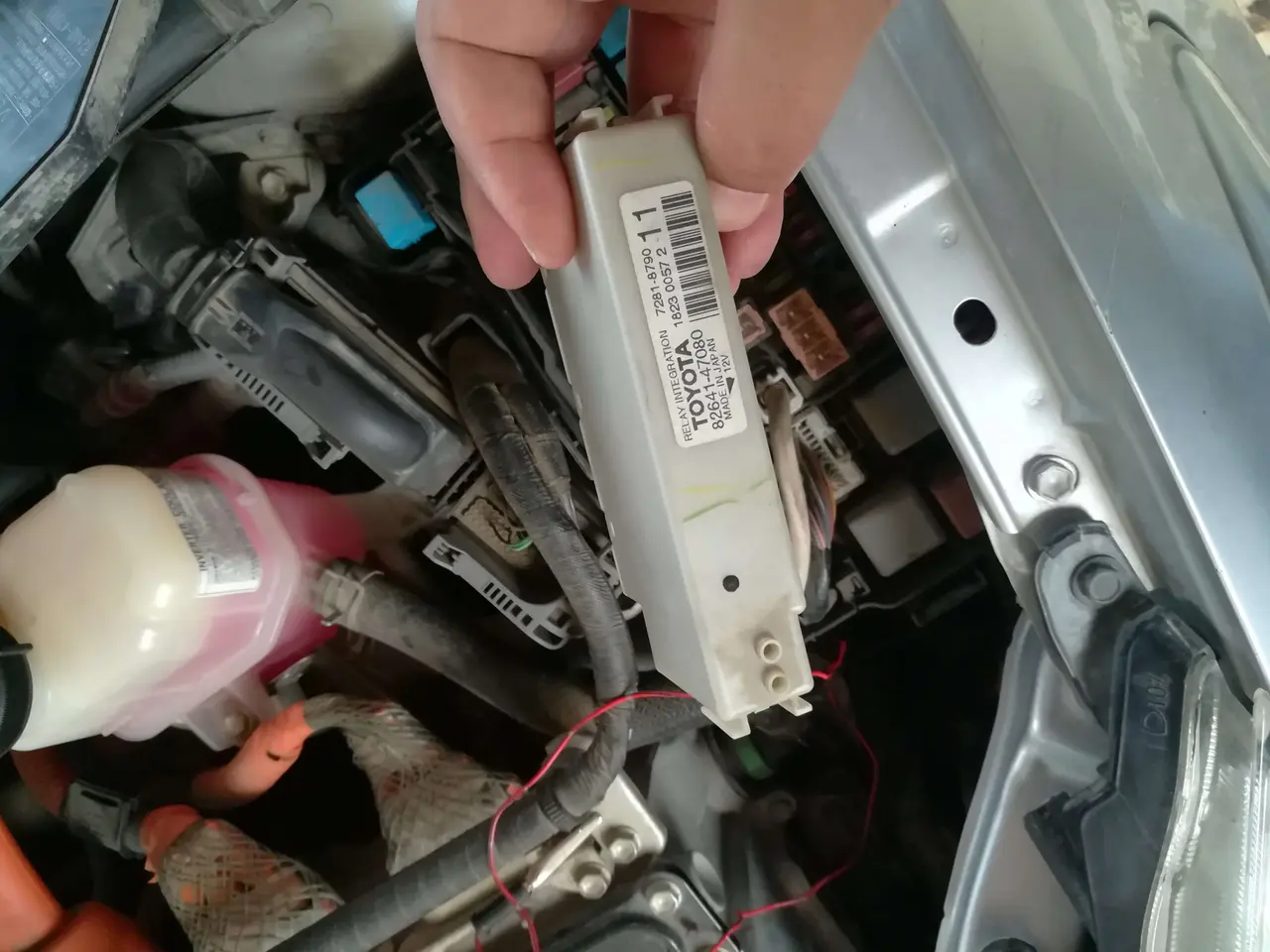

Controller

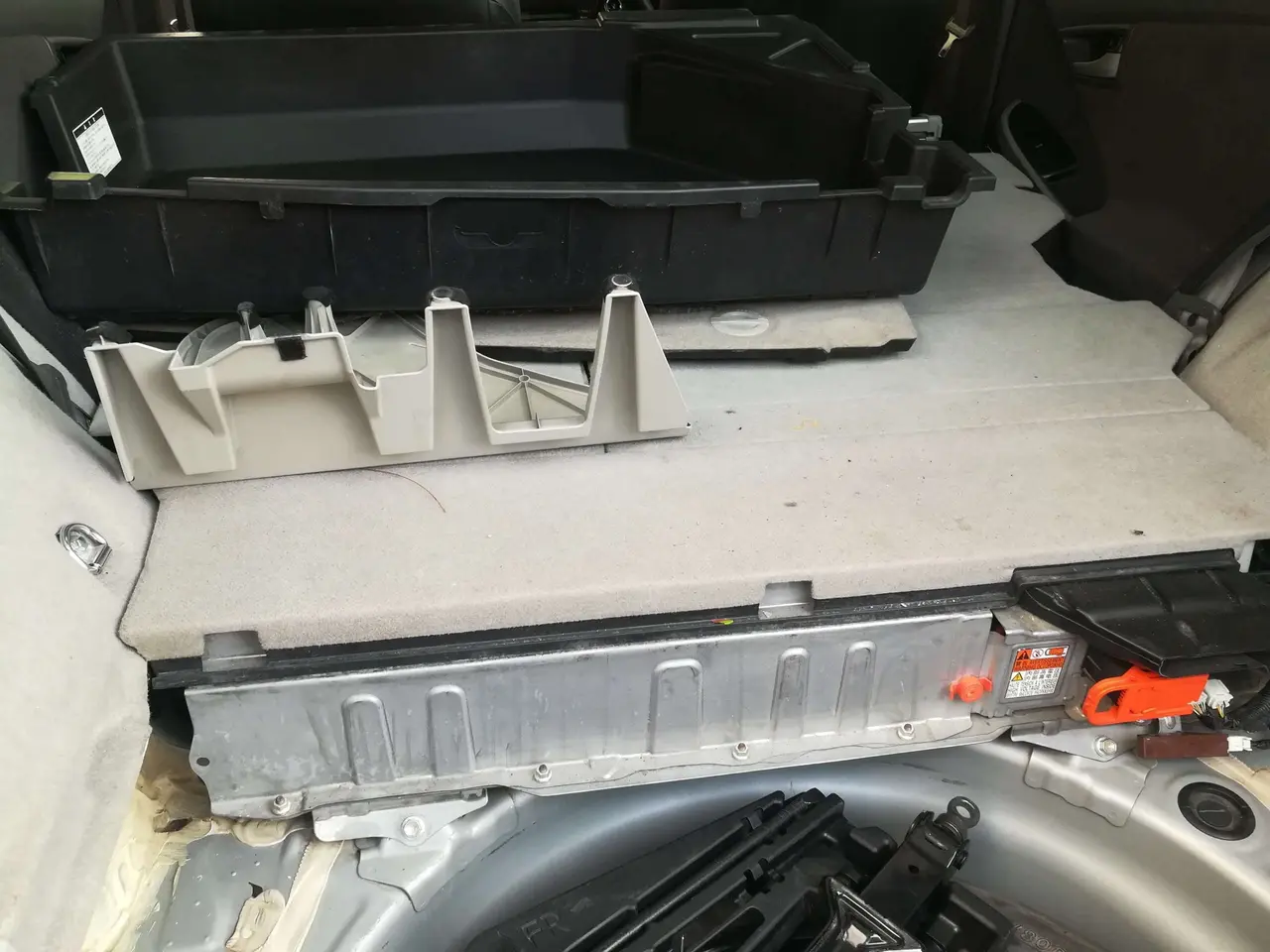

Hybrid Battery Pack Prius 2011

The batteries were checked individually as the system was showing battery error

Battery Block Voltages

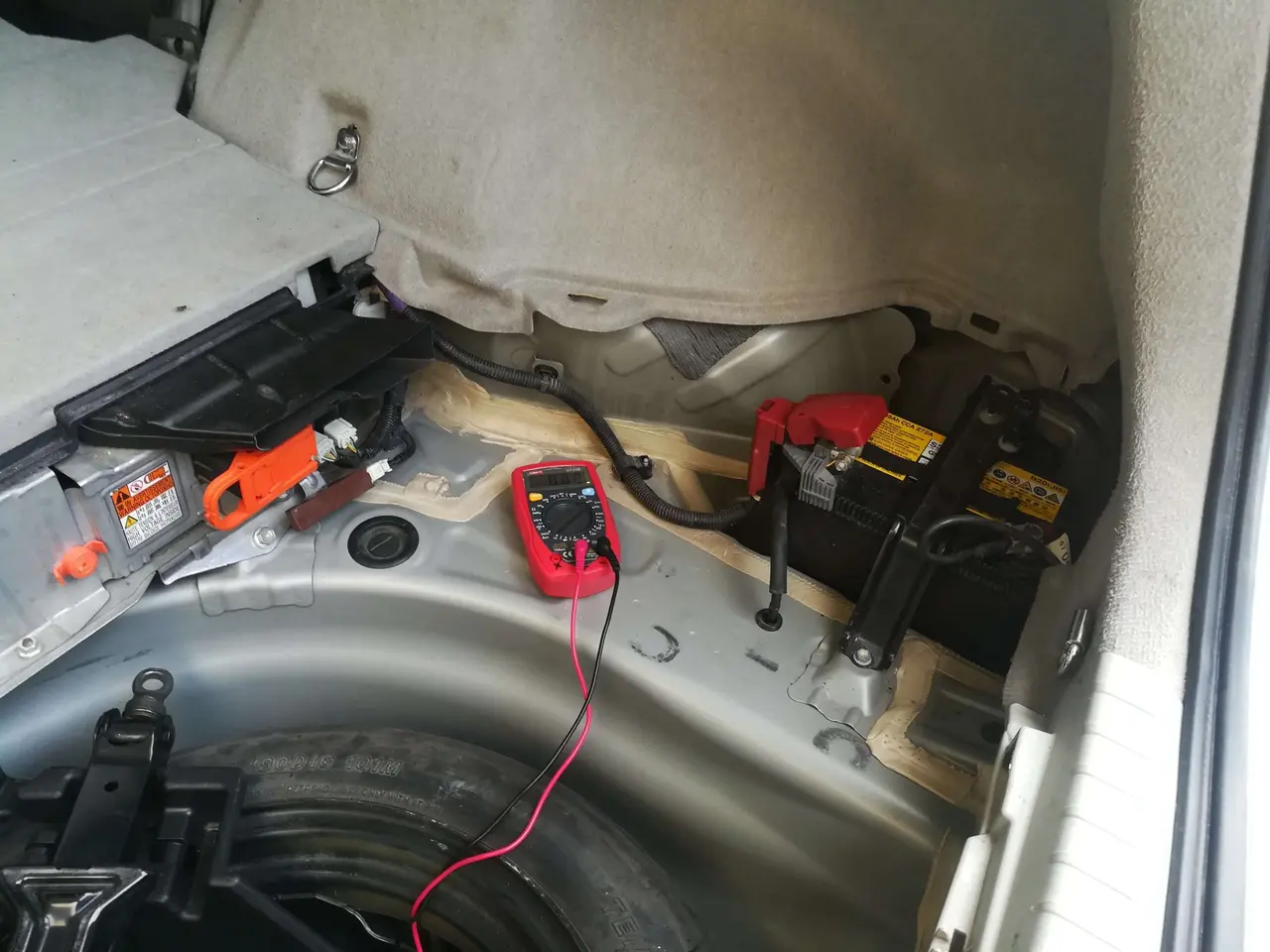

Testing Voltage On Battery Pack

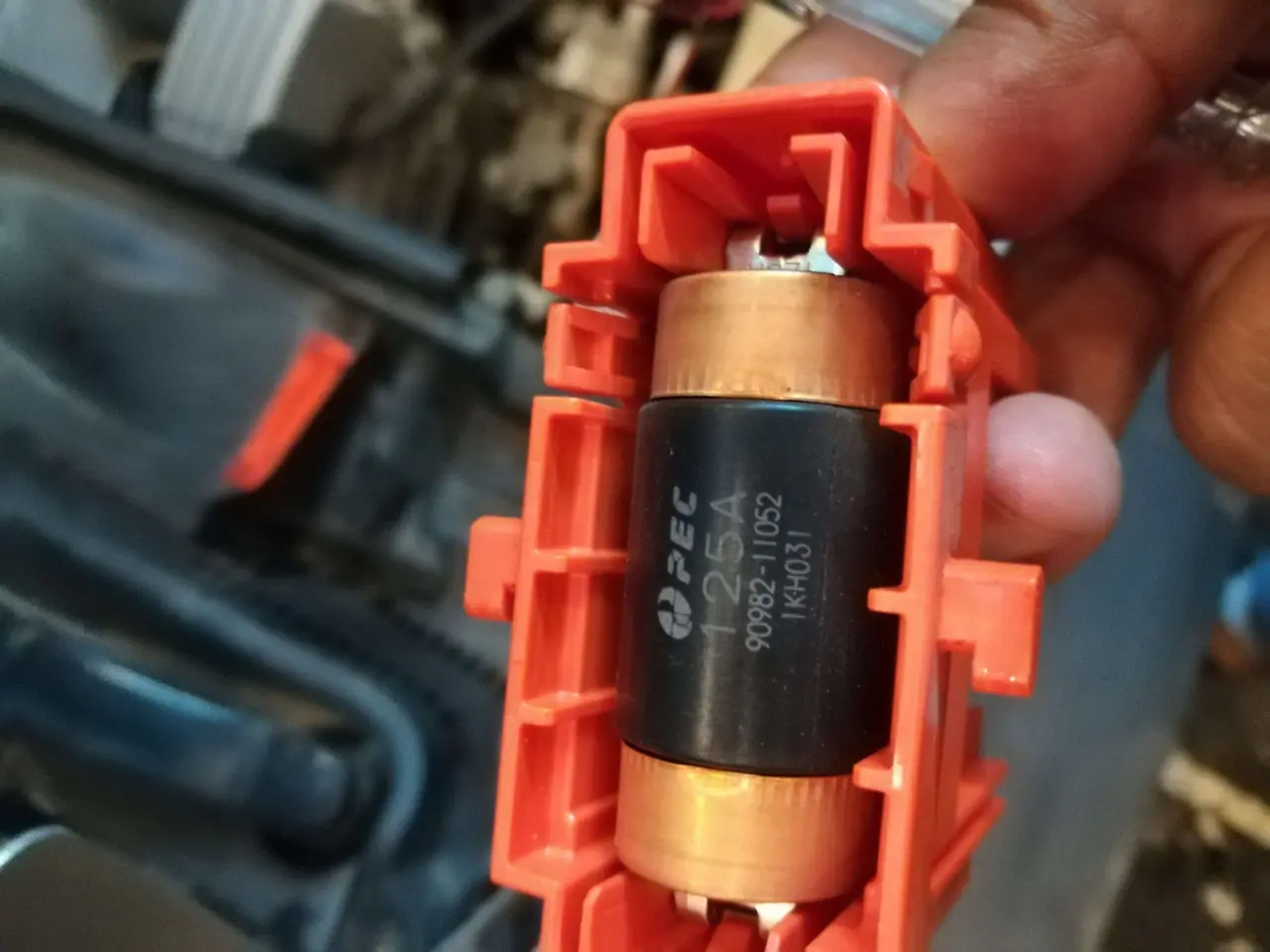

Testing of Main fuse

The vehicle is now perfect and drive-able after removing of Toyota Prius c1259 error. Installation of all equipment done after testing.

On-site Work, Everything Done At Customers Home

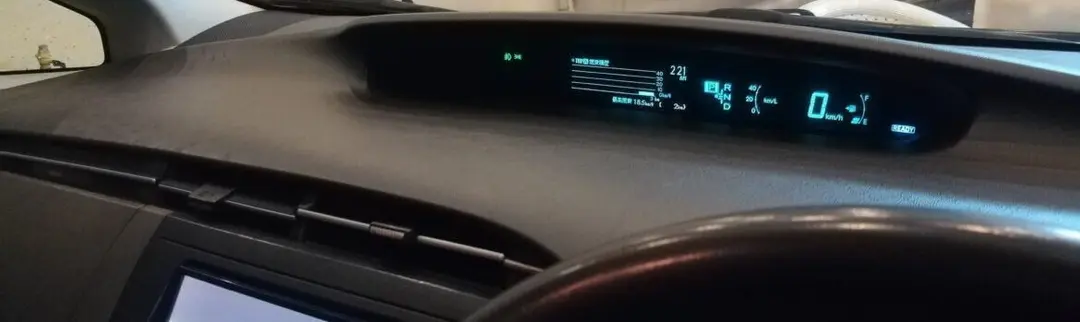

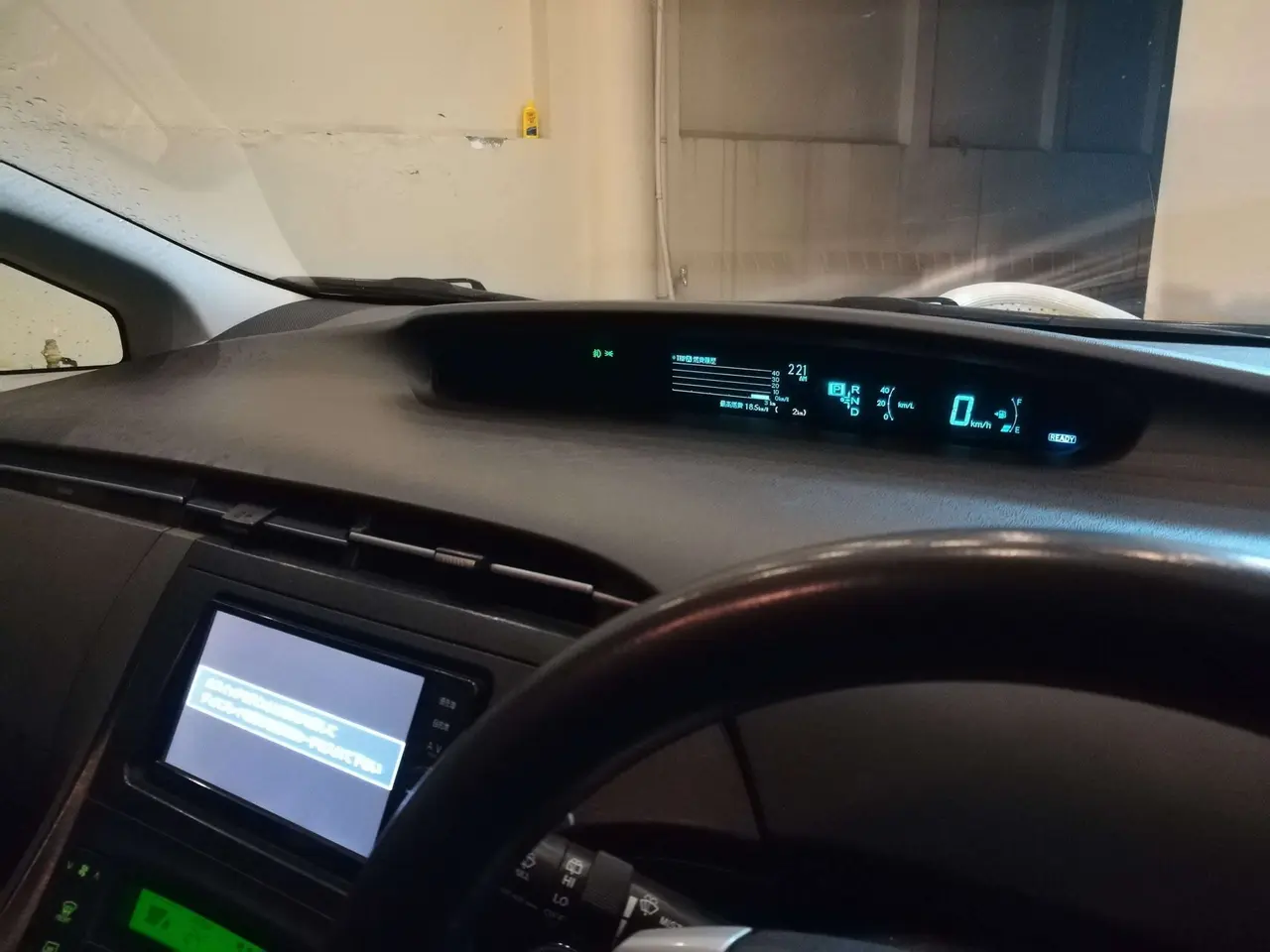

100% Ok and ready to use with 18.5KM average during testing

Hybrid Battery Fan Cleaning – Why It’s Critical

A clogged hybrid battery fan can overheat the battery pack, leading to performance degradation and triggering error codes like P0A80 or P3000.

Fixmycar.pk’s Hybrid Fan Cleaning Service Includes:

• Complete removal of panels to access fan
• Dust and debris removal from battery cooling ducts
• Scan and reset of battery ECU
• Optional deep cleaning of battery control module

Comprehensive Hybrid Power Unit Servicing

For in-depth issues, Fixmycar.pk also provides hybrid power unit teardown and servicing for both Toyota and Honda vehicles.

Service Features:

• Disassembly of hybrid battery and powertrain control units
• Testing and replacement of faulty modules or cells
• High-voltage cable inspection
• Reassembly and system calibration

Contact Fixmycar.pk

Don’t let hybrid system errors keep your Prius off the road. Trust the experts at Fixmycar.pk for reliable, safe, and affordable repairs.

Call Now: 0331-2227989
Website: Fixmycar.pk

Final Thoughts: Timely Diagnosis Prevents Costly Repairs

Hybrid system errors like C1259 and P0A0D can render your Prius inoperable. However, these issues are often repairable without replacing the entire hybrid battery. With expert diagnosis and targeted repairs from Fixmycar.pk, you can restore your hybrid vehicle’s performance, efficiency, and safety.

Act early. Diagnose smart. Drive worry-free.
