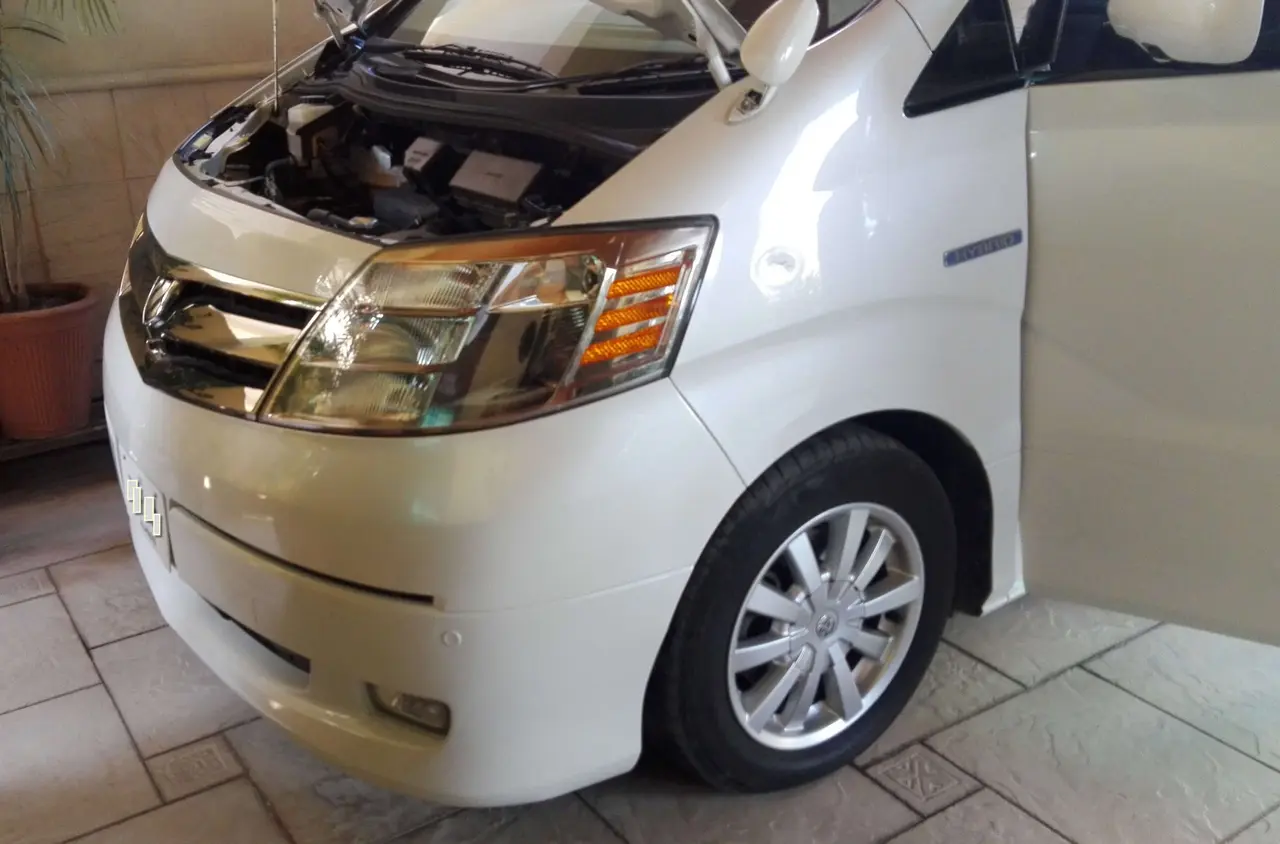

Toyota Alphard Hybrid E-Four

The Toyota Alphard Hybrid E-Four is a luxury minivan that combines a hybrid powertrain with an advanced all-wheel-drive system. The vehicle is equipped with a 2.5-liter four-cylinder engine that works together with two electric motors to provide a total power output of 215 horsepower. The E-Four system uses an additional electric motor to power the rear wheels, providing extra traction and stability on slippery surfaces. The Alphard Hybrid E-Four also features a spacious and comfortable interior with luxurious amenities such as leather seats, a premium sound system, and a rear-seat entertainment system. Overall, the Toyota Alphard Hybrid E-Four is a versatile and stylish vehicle that offers a unique combination of performance, efficiency, and luxury.

Toyota Alphard maintenance and services

We have attached some images and reference data for the Toyota Alphard Hybrid

Please note that it is a hybrid vehicle with CVT ATF and not WS ATF, the following chassis codes use CVT-TC transmission oil. You can also visit the link for the vehicles list using ATF-WS or CVT-TC by clicking here

Toyota CVT-TC Transmission oil

https://fixmycar.pk/toyota-cvtf-tc-cvtf-fe/

Alphard: ATH10W, ANH20W, ANH25W

Premium Hybrid Van

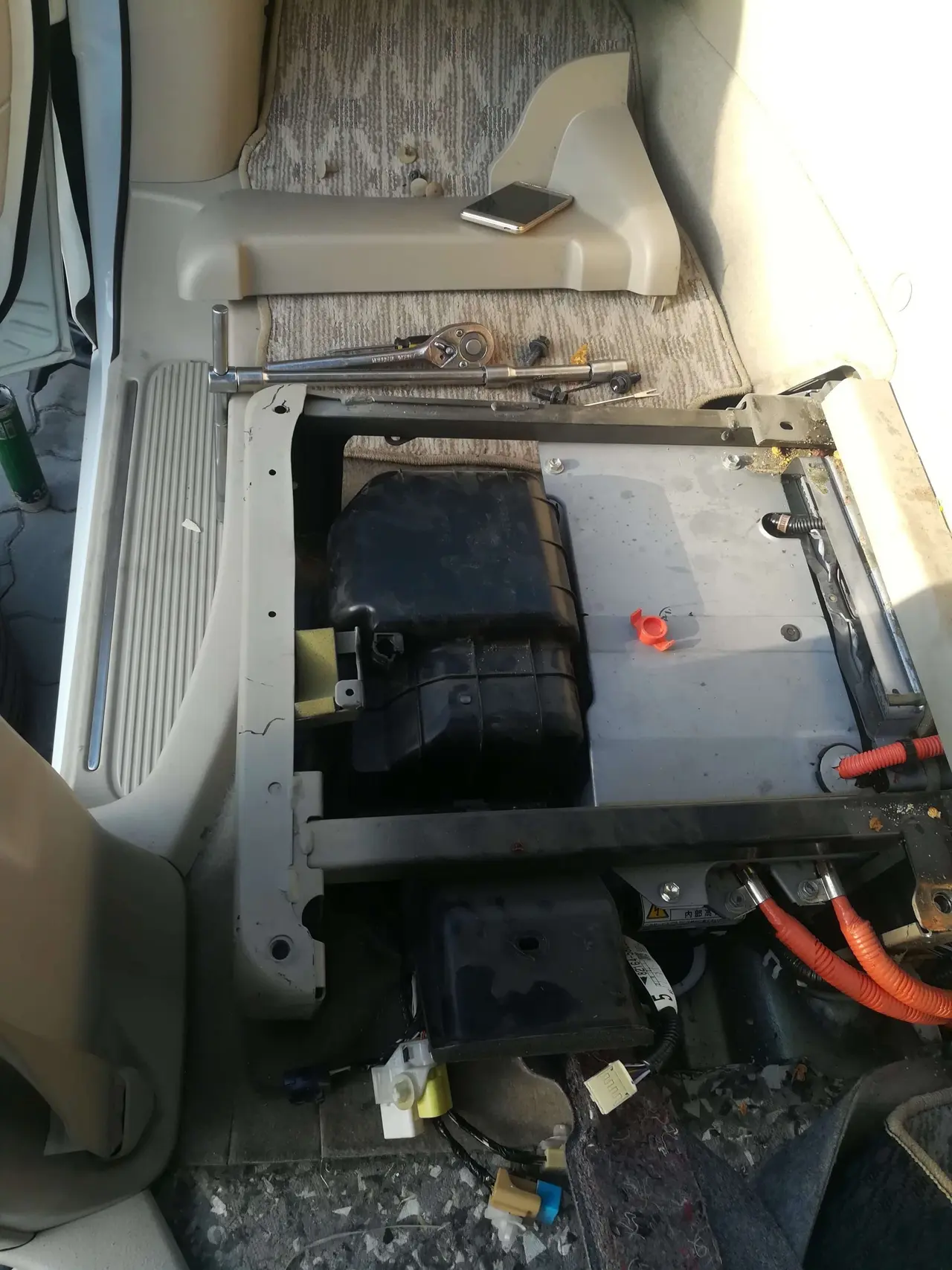

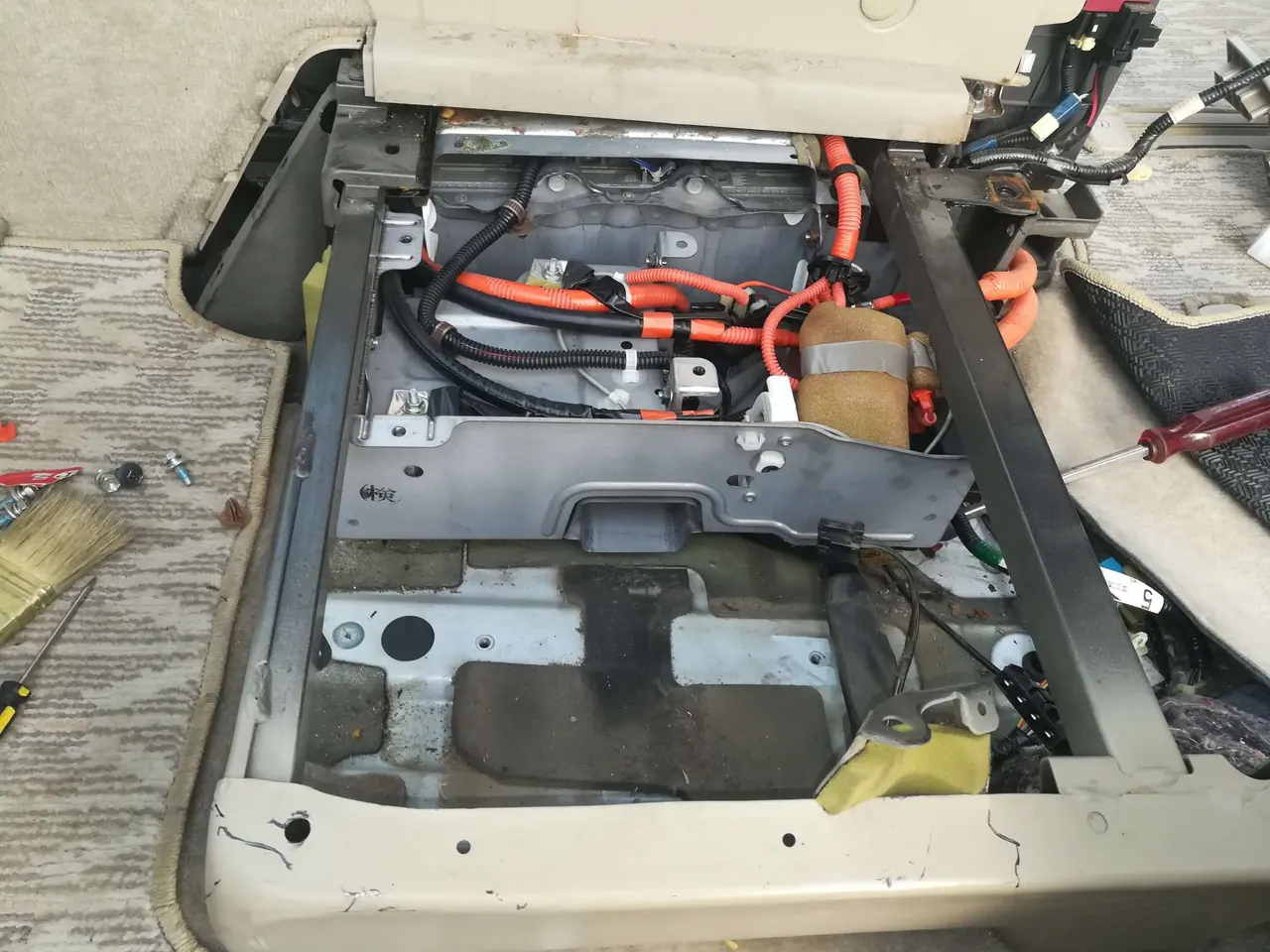

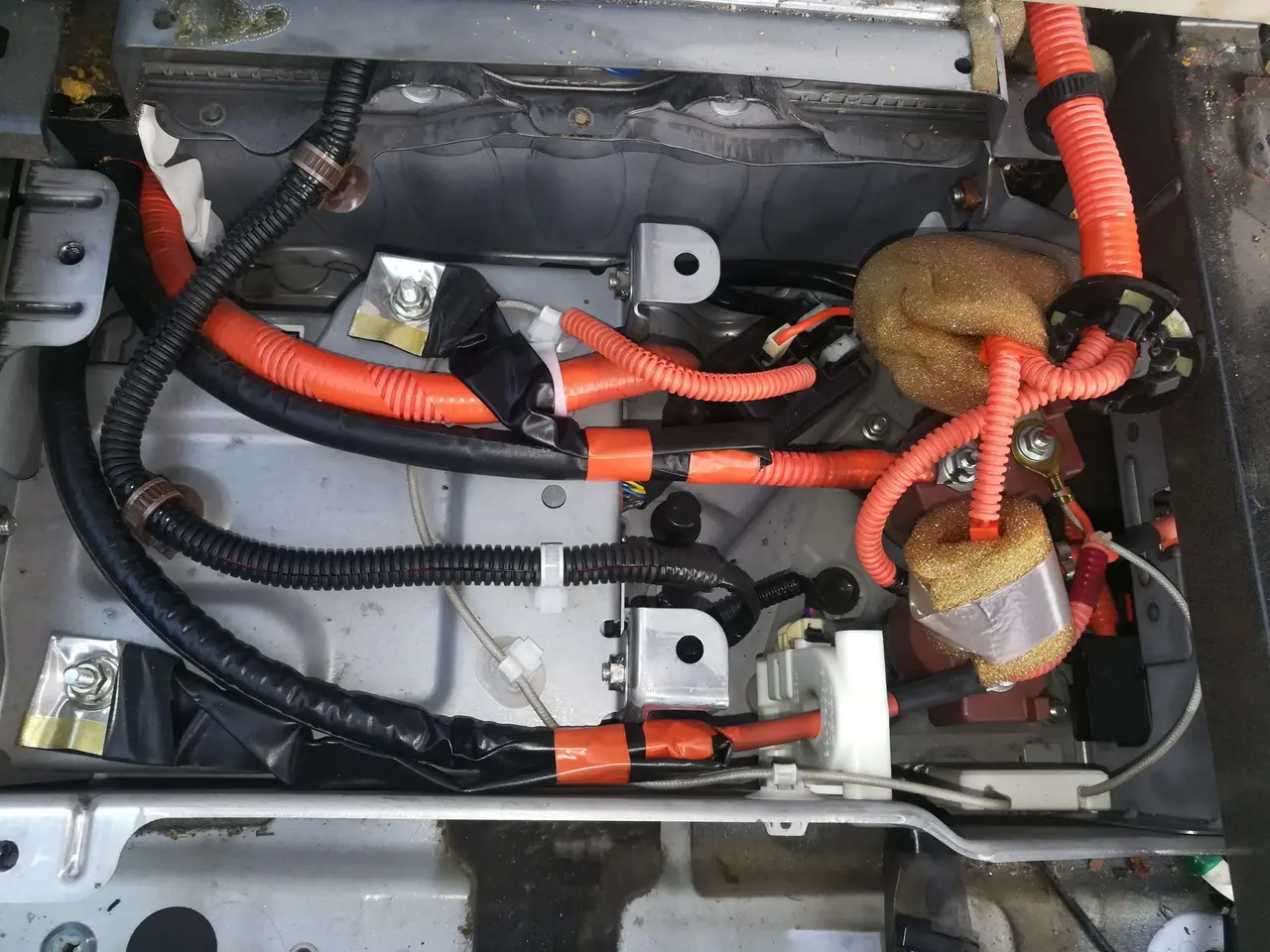

Tear down of Alphard Hybrid battery

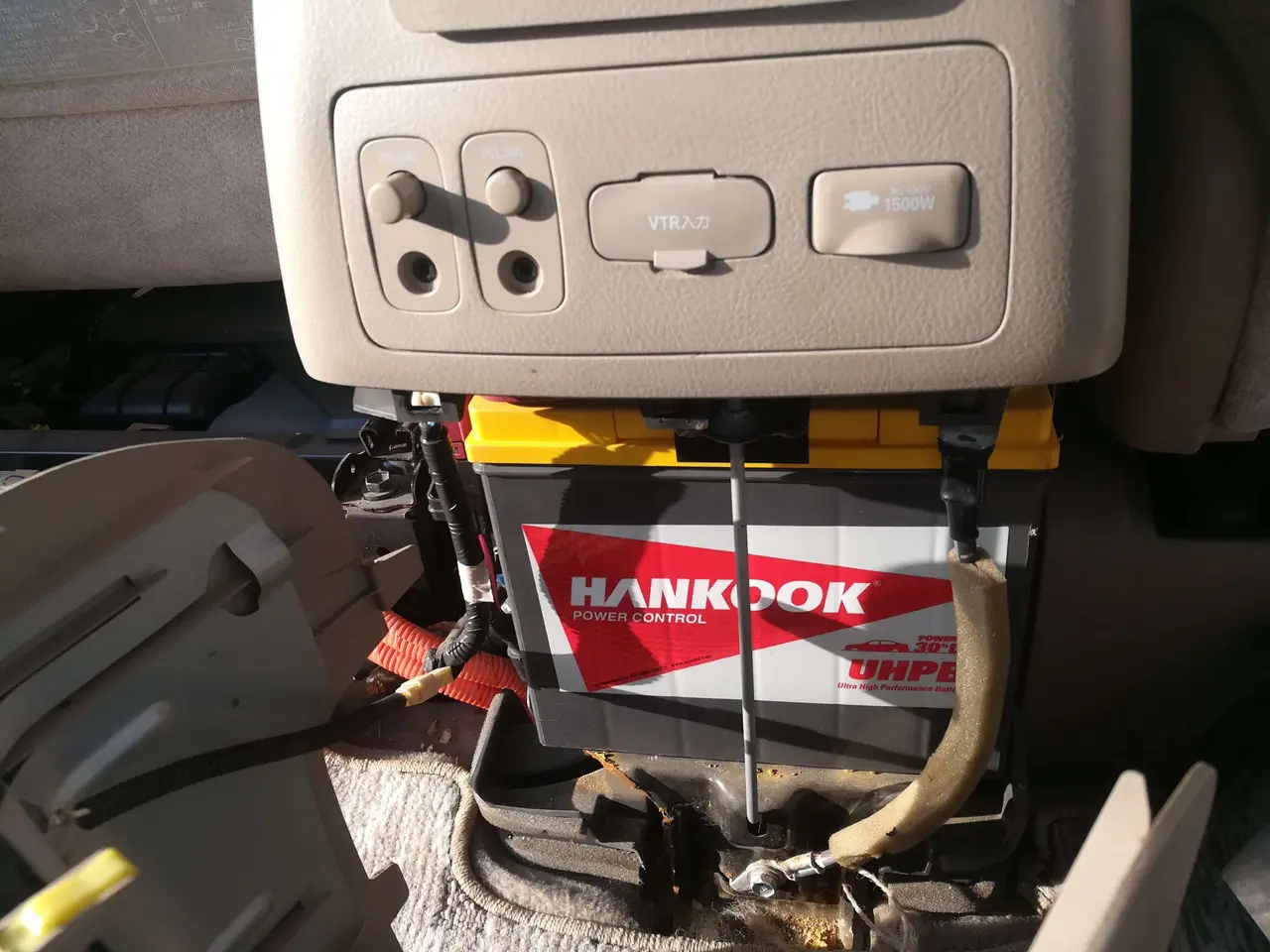

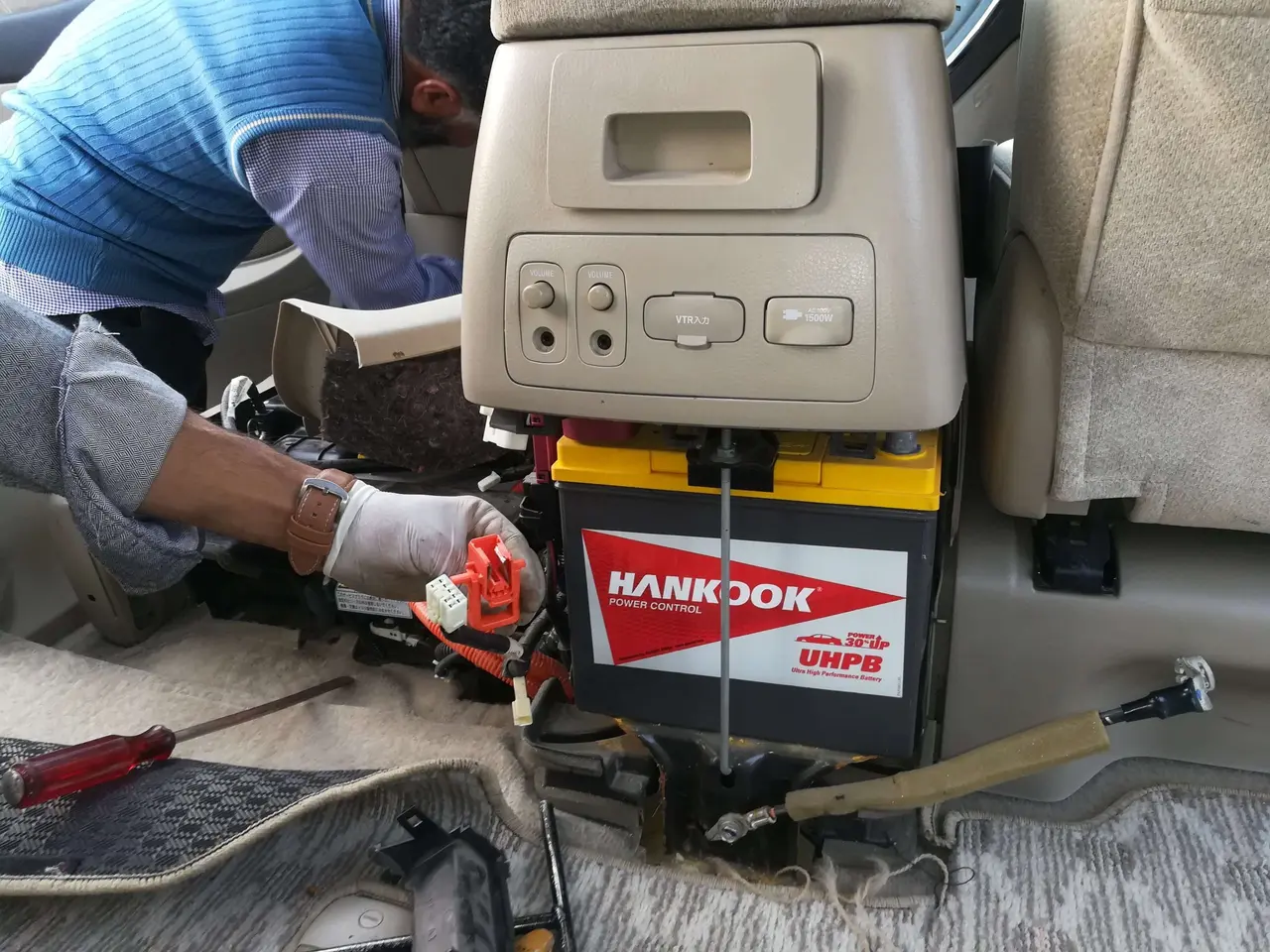

Access to Auxiliary 12V battery is between the front 2 seats

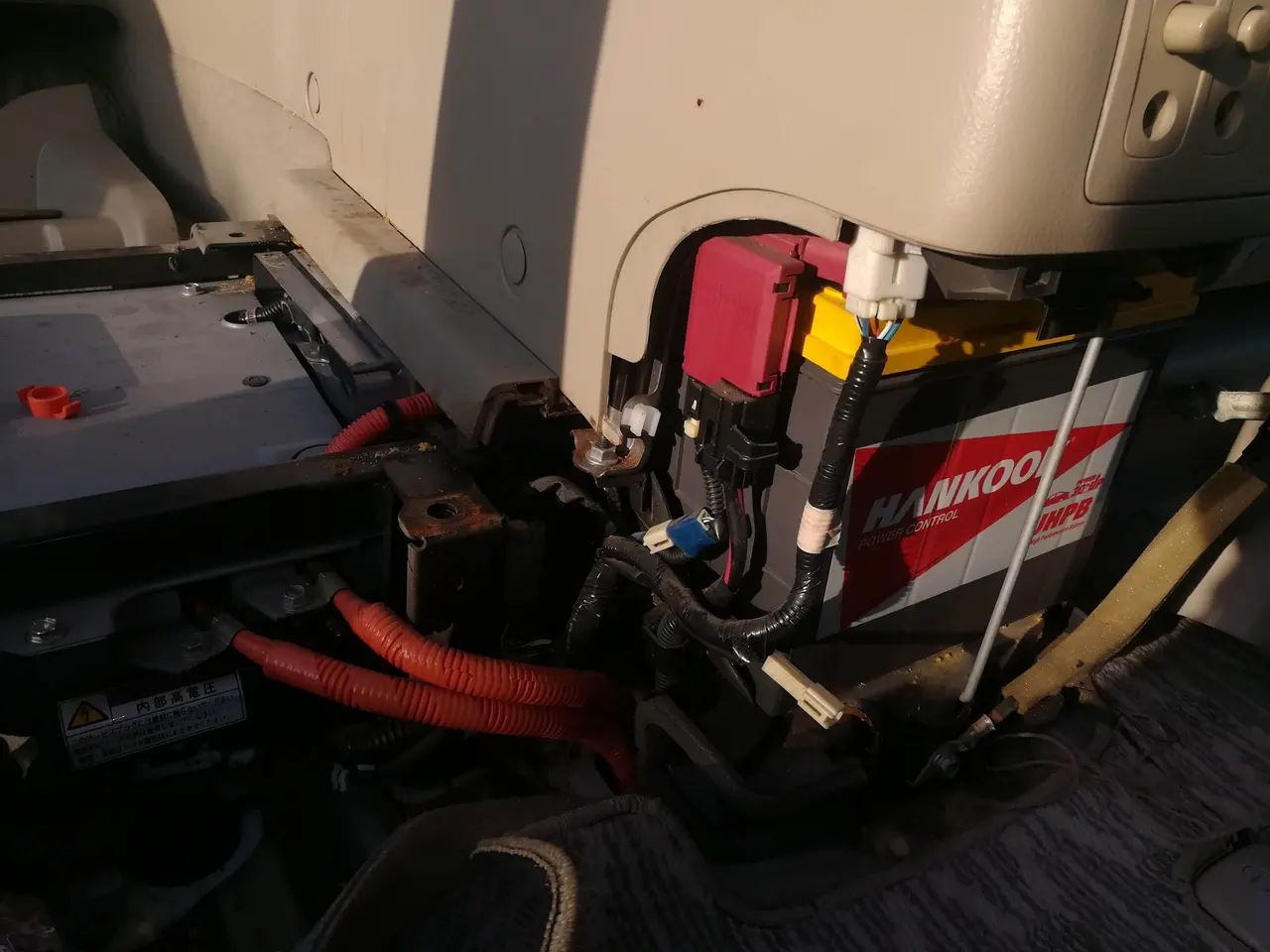

12v battery

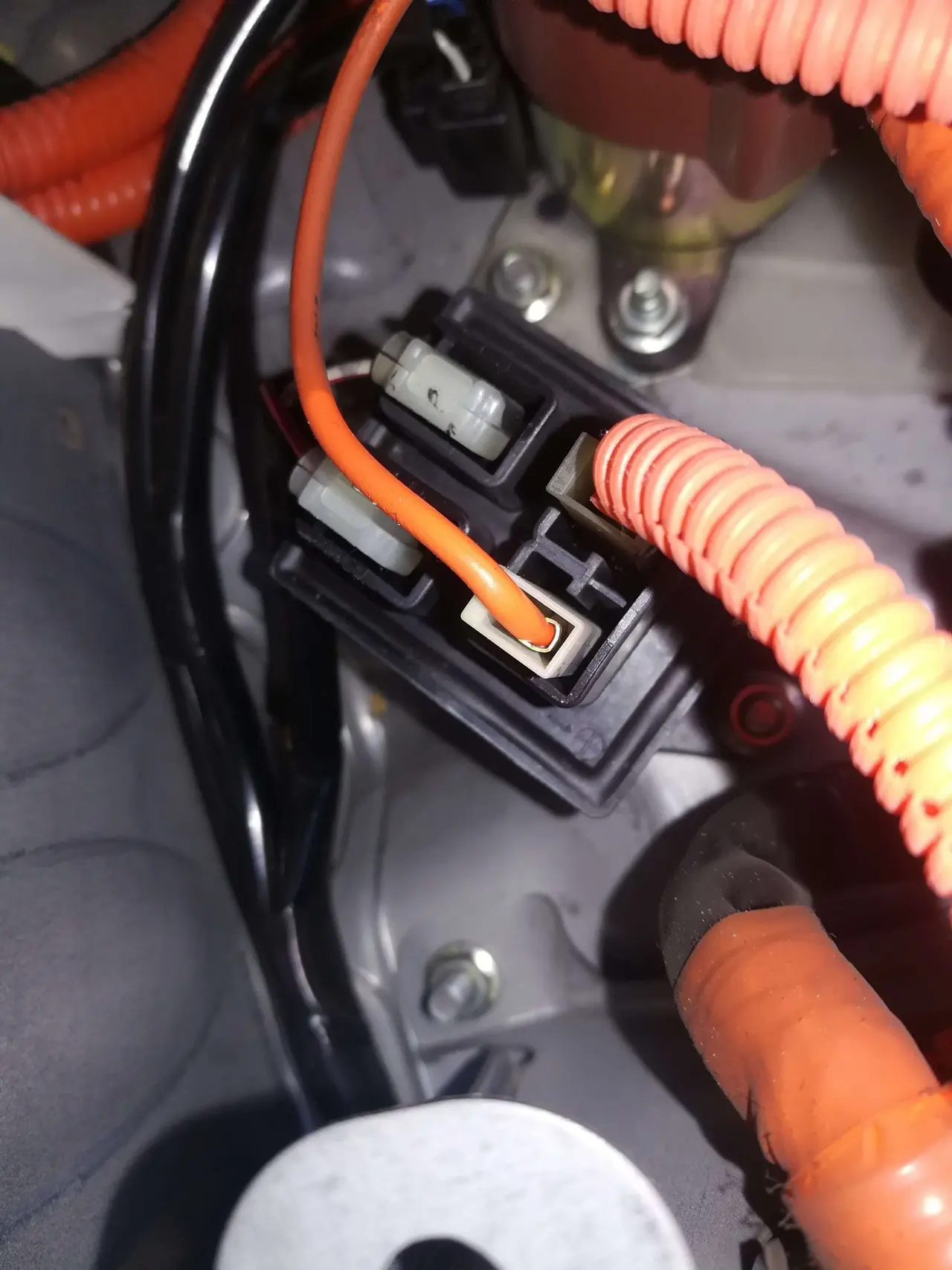

Remove Hybrid battery Fuse and disconnect power

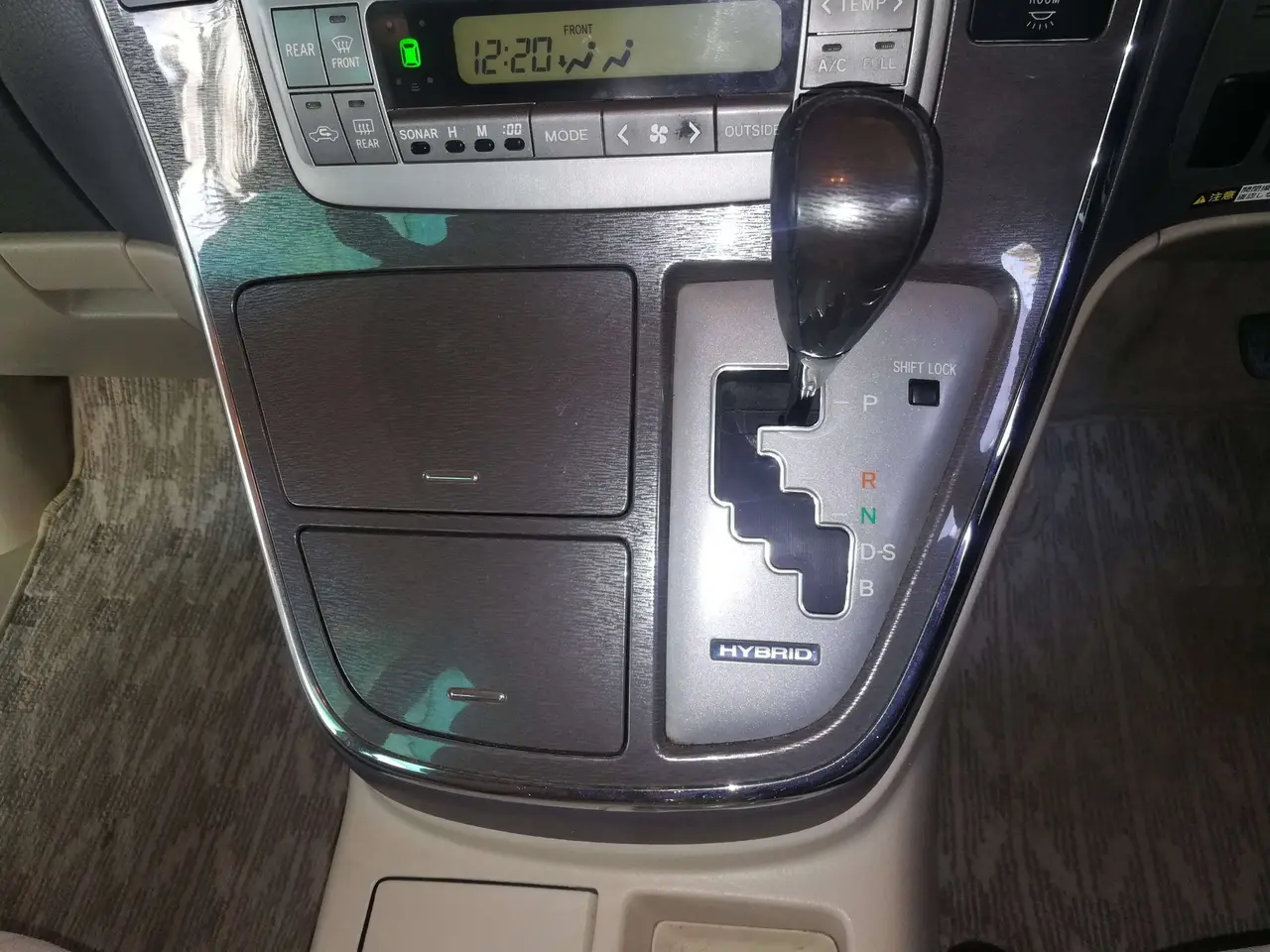

Gear Selector Lever

Removal of left passenger seat

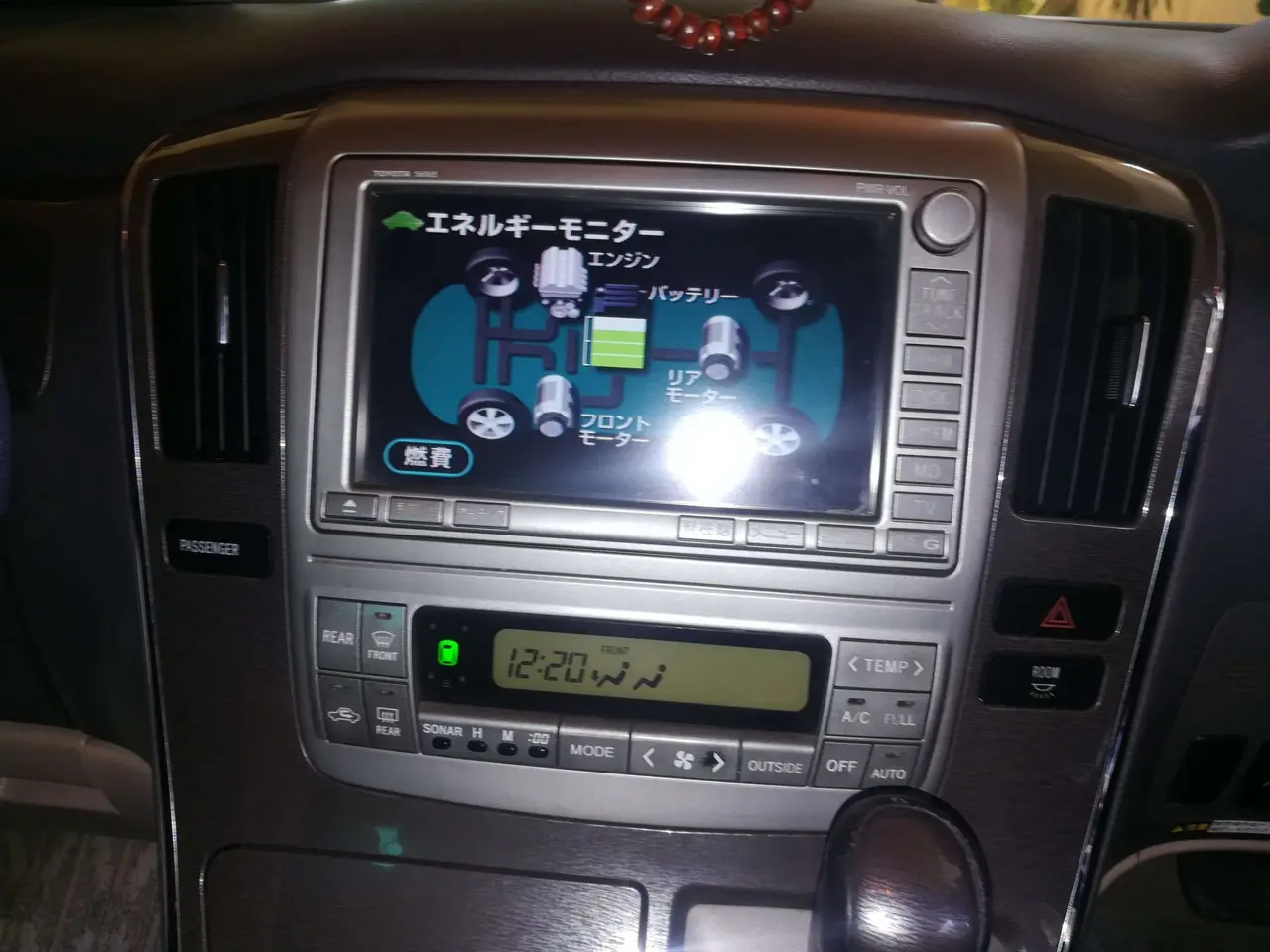

Multi Information Display / Hybrid System overview

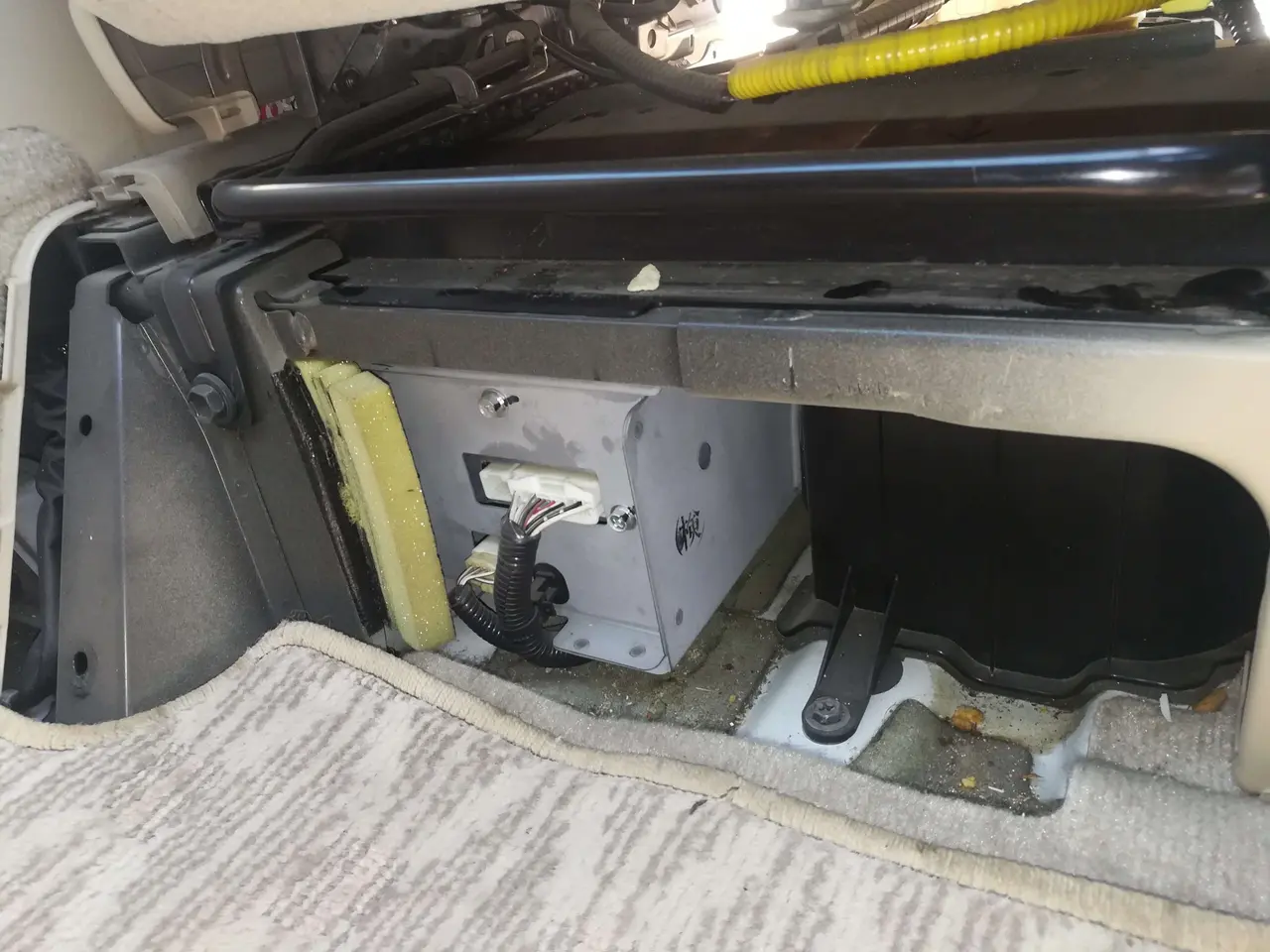

Hybrid battery controllers

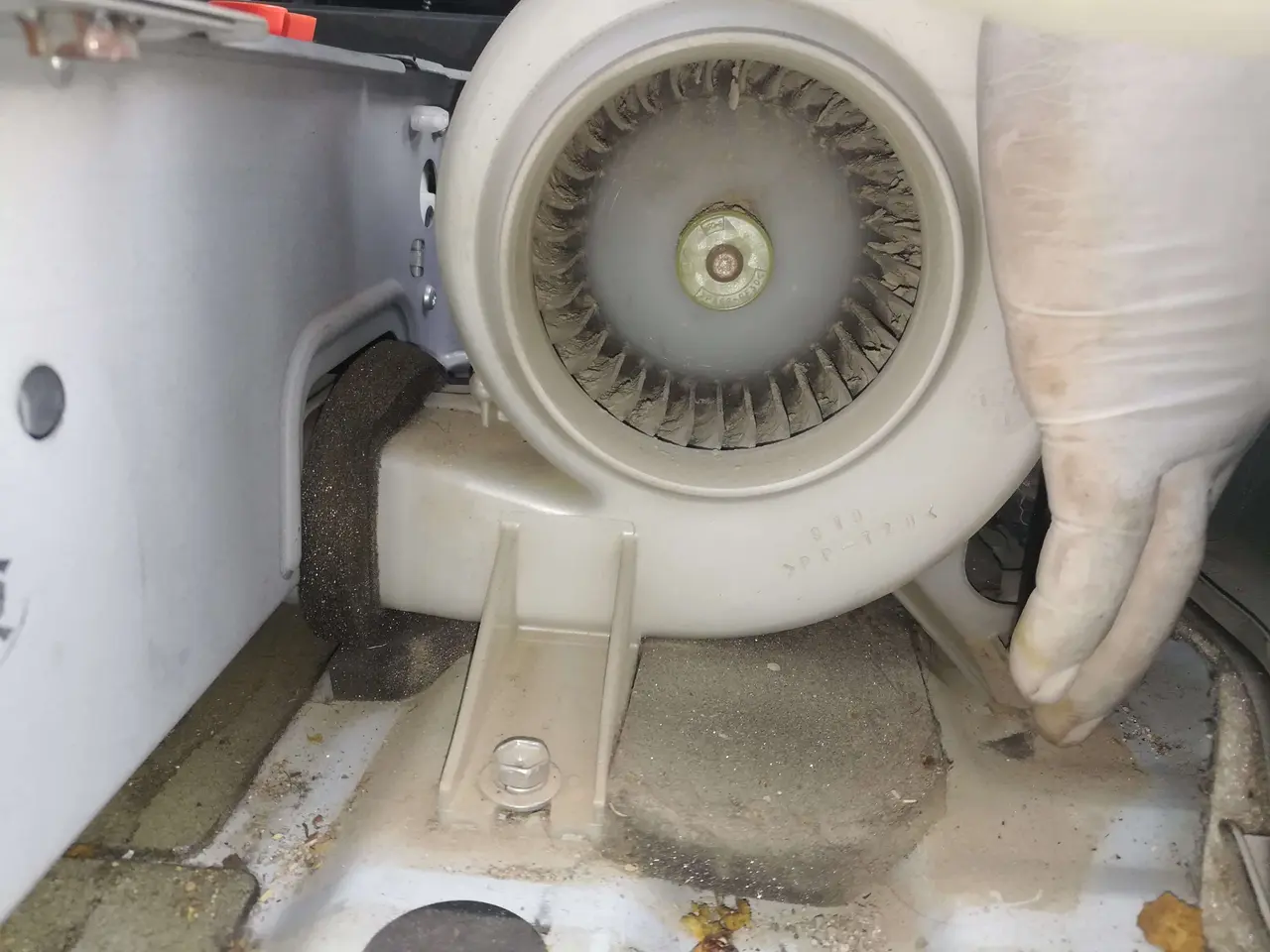

Access to Hybrid Blower Fan / Cooling Fan

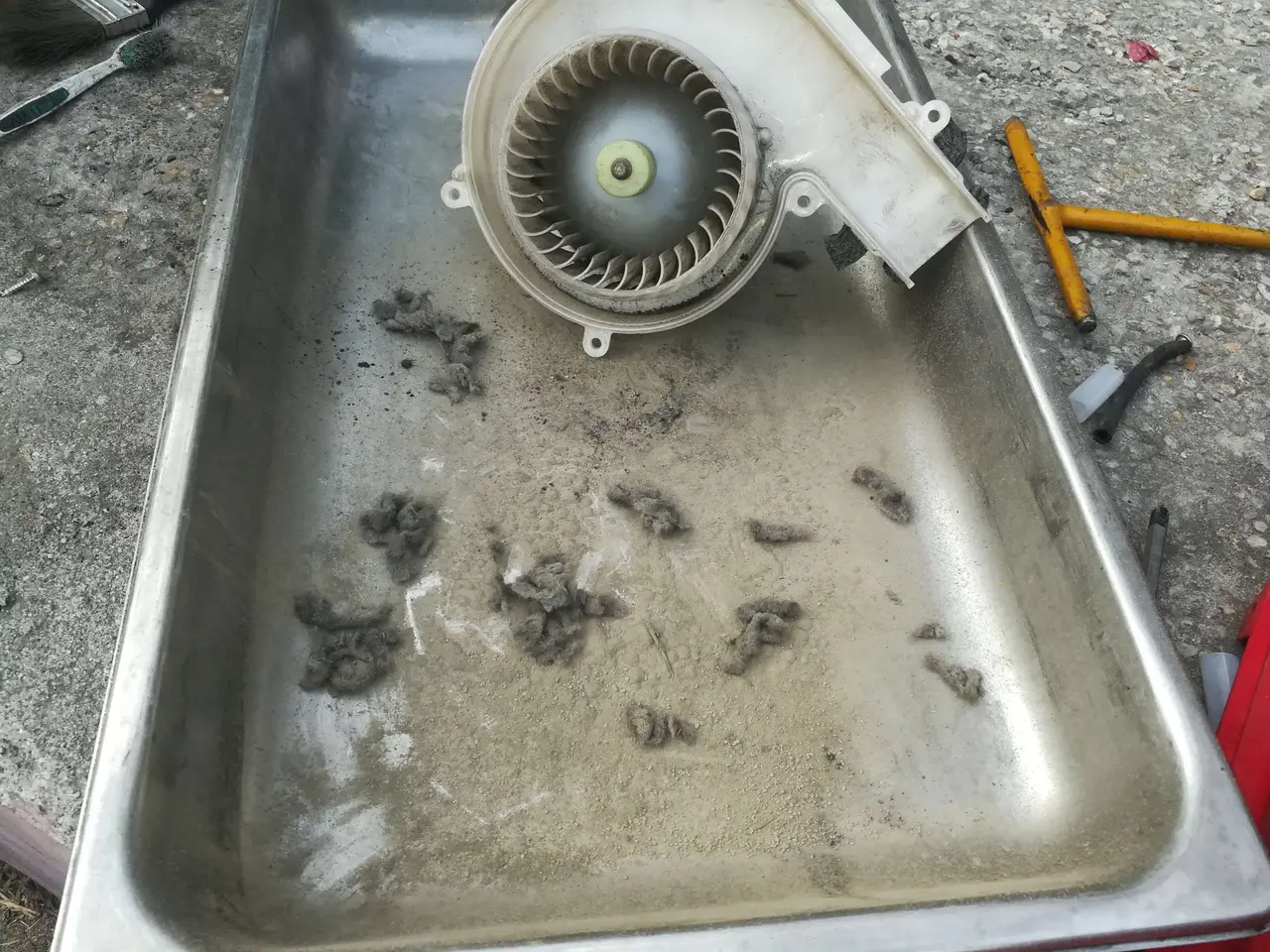

Fully blocked Battery cooling fan with Allergens, dust and carpet threads

Battery cooling fan placement

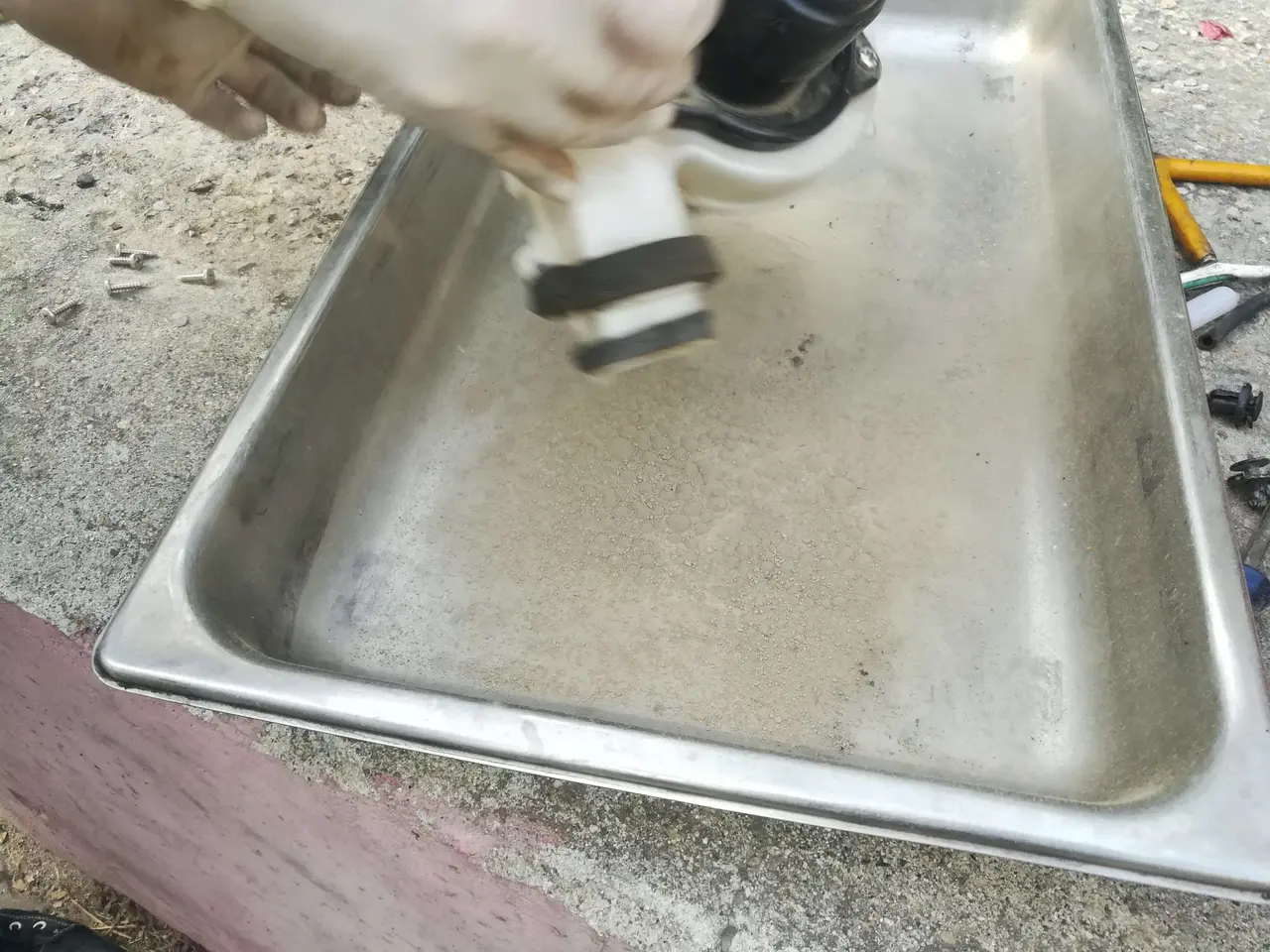

Cleaning the Fan/Blocked Fins

Cleaning contacts and terminals

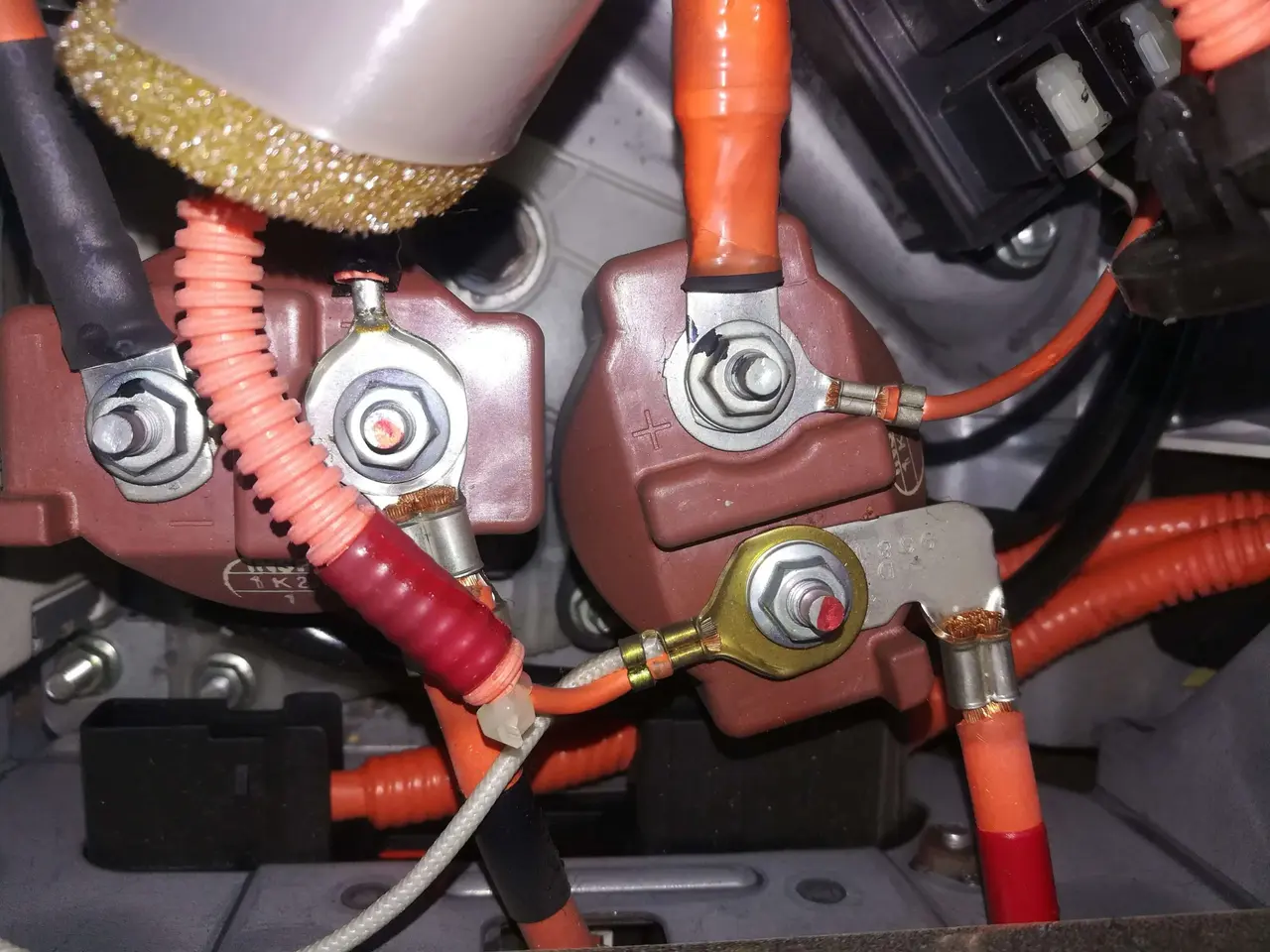

Power Junction and fuses

Extreme precautions while working should be taken

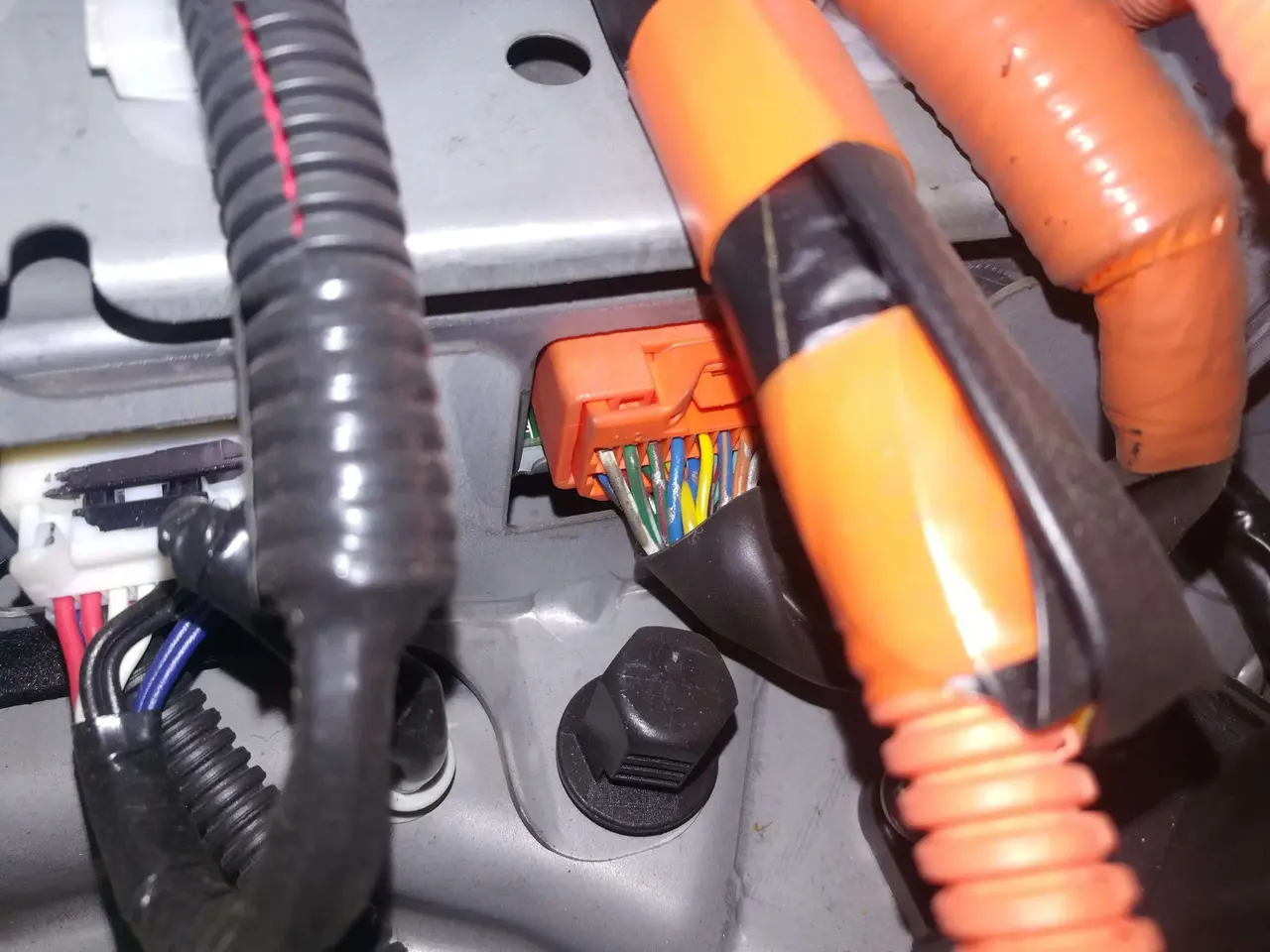

CAN network of HV battery

Hybrid Inverter

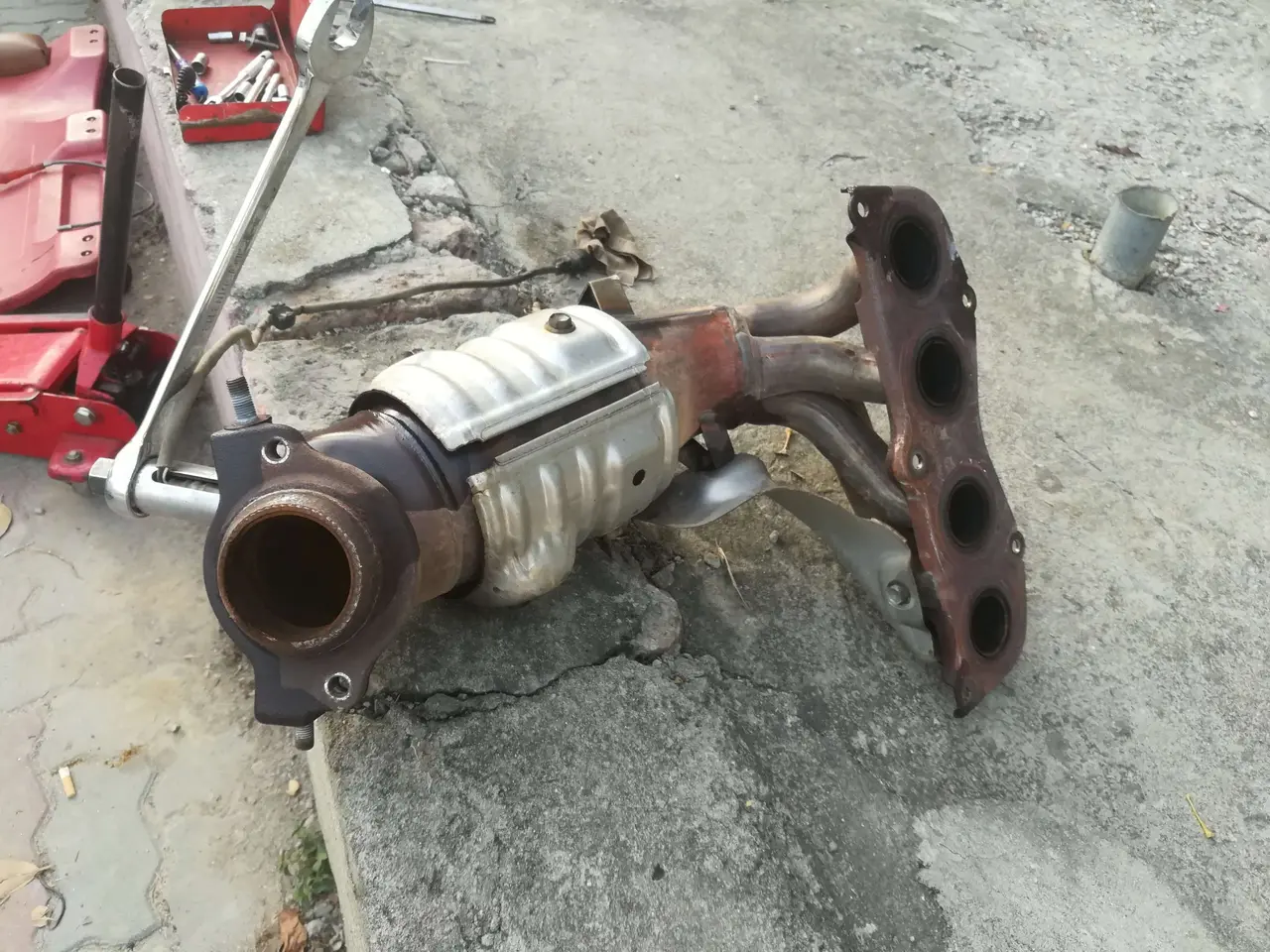

Catalytic Converter of Toyota Alphard

The catalytic converter was recovered by cleaning it thoroughly.

Removal and Cleaning of Catalytic Converter

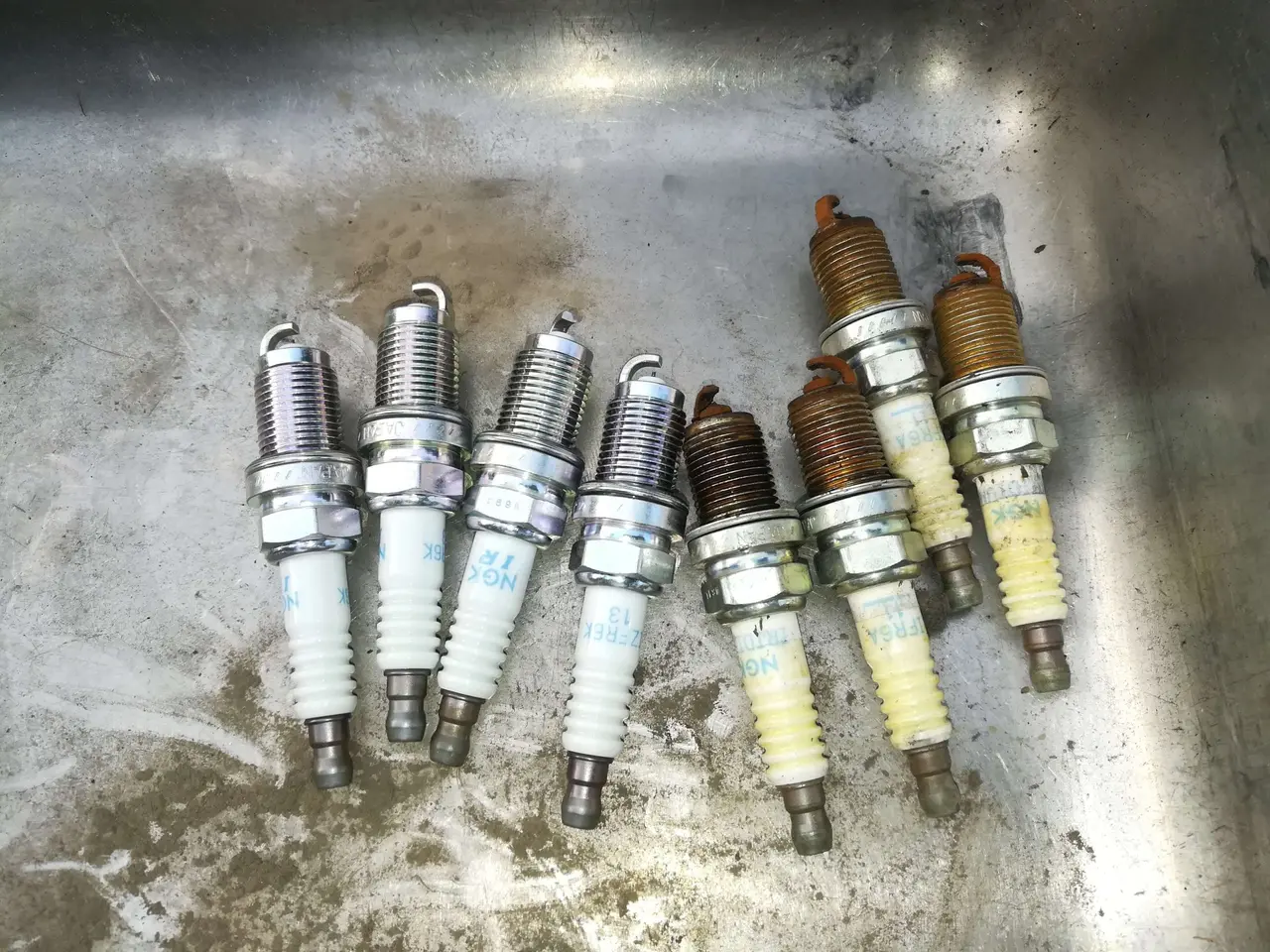

Spark Plugs for Toyota Alphard Hybrid

New NGK Iridium spark plugs

This vehicle was not converting to battery / EV mode due to choked catalytic and battery cooling fan, the above maintenance brought it back to perfect condition without carrying any unnecessary repairs.

Any vehicle can perform perfectly for a very long time if the maintenance work is done on-time. We also recommend not to have these complicated vehicles opened by  technicians who are not trained or skilled to carry out the job.
